Tomasz Blachowicz and Andrea Ehrmann, from the Silesian University of Technology in Poland and Bielefeld University of Applied Sciences in Germany, respectively, have released the details of their recent study in ‘3D Printed MEMS Technology – Recent Development and Applications.’
Microelectromechanical systems (MEMS) are used in contemporary electronic applications, whether in the medical field, measurements, microfluidics, or the Internet of Things. They may act as miniature sensing devices or actuators and are usually made with silicon, and more recently with polymers. Typical examples of MEMS are:
- Pressure sensors
- Gyro sensors
- Inkjet heads
The authors point out that 3D printing of MEMS often present challenges, but there are numerous recent developments which may be able to benefit from the most classic advantages of 3D printing like faster production and greater affordability. For 3D printing, common polymers are acrylonitrile butadiene styrene (ABS) or poly(lactic acid) (PLA), as well as polyamide (nylon) or polycarbonate.
“In spite of the additional degrees of freedom offered by 3D printing, on average, less than 1% of the studies dealing with 3D printing concentrate on MEMS,” state the researchers. “This is in contrast to the possible advantages of 3D printing in MEMS production, especially related to avoiding problems with an undesired underetching of 3D structures related to misalignments of the anisotropic etch pattern.”
“It can be expected that 3D printing methods allow for tailoring 3D shapes in the desired way, making the structures more reliable when the process parameters are properly adjusted.”
Blachowicz and Ehrmann look back to research from 2013 as Leary et al. experimented with developing MEMS channels for use in organs-on-a-chip, 3D printing microfluidic devices. Soon after, Lifton et al. began exploring 3D printing of microfluidics and labs-on-a-chip, comparing a wide range of techniques for fabrication of MEMS devices. Along with notes on toxicity and the careful selection of materials that are required in terms of biocompatibility, the authors also discussed techniques such as:
- Two-photon and multi-photon polymerization
- Inkjet 3D printing
- Additive manufacturing processes with metal
- Combined and hybrid technologies
A variety of different 3D-printed sensors and actuators are possible too, to include chemical sensors, physical sensors, switches, vibration actuators, and more.
For aeronautic and astronautic applications, the authors explored a concept using MEMS dielectric elastomer actuators with a 3D-printed wing skeleton. Simulation allowed for optimization of the wings, while a dielectric elastomer actuator was used due to potential for greater affordability, high work density, and at high frequencies.
Other researchers such as Khandekar et al. 3D printed parts for microsatellite microthrusters, using ceramic polymer composites.
“After the first ideas of 3D printing MEMS approximately 20 years ago, much progress was achieved in combining these technologies. Especially microfluidic systems, but also some MEMS sensors and actuators can nowadays be realized by diverse 3D printing technologies,” concluded the researchers.

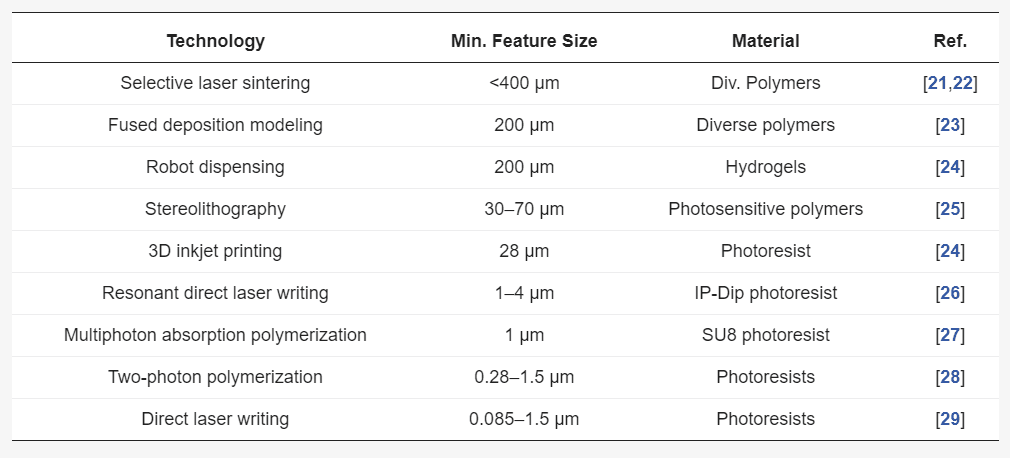

“New additive manufacturing techniques, such as the two-photon polymerization technique, allow for preparing smallest features with dimensions below 1 µm. For more established 3D printing techniques, new ideas emerged how to reduce the minimum feature size, in this way making 3D printing more and more suitable for MEMS fabrication.”
What do you think of this news? Let us know your thoughts! Join the discussion of this and other 3D printing topics at 3DPrintBoard.com.[Source / Images: ‘3D Printed MEMS Technology – Recent Development and Applications’]
