Akeel Abtan recently submitted a PhD thesis, ‘Design and Fabrication of Origami Elements for use in a Folding Robot Structure,’ to the University of Leeds (Institute of Design, Robotics and Optimisation School of Mechanical Engineering). Striving to develop robots that could transform as needed for search and rescue tasks, Abtan explored three different types of design structures.
While many of us may just think of robots as either fantastical cinematic constructs from movies like Star Wars, or in reality as offering assistance through assembly lines in factories, they are used in a variety of very real applications today—from medicine to manufacturing; however, one more specialized area where robots are extremely helpful is in exploration tasks—especially those that may be in disaster areas or in more detailed settings like intricate surgeries.
“Some of these tasks have very small and limited access. These tasks require operating robots with less damage to access. There are two examples of these situations which are the search and rescue of people from collapsed buildings and the surgery for difficult places in the body,” explains Abtan.

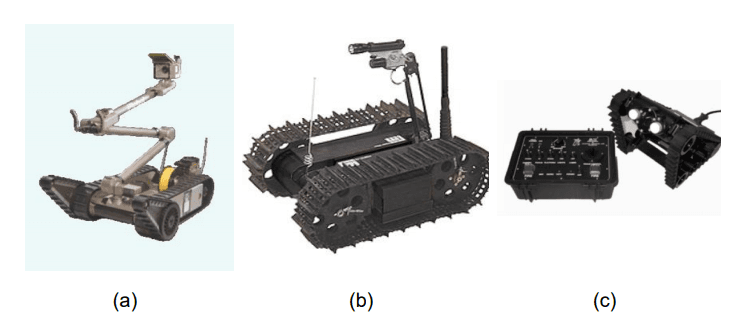

“The idea of using the robots in search and rescue tasks was proposed in 1980, but the search and rescue robots (SAR) were not used practically until the 11 September terrorist attack on the World Trade Centre. This regrettable event provided an opportunity to test the urban search and rescue robots (USAR) in real rubble piles.”
In recent years, researchers have designed a wide range of robots to aid in different applications, to include:
- Modular robots
- Four-legged configurations
- Snake robots
- Swarm robots
- Minimally invasive robots
- Folding robots
- Self-folding structures
There are challenges in using any robots, however, just as there would be in using human resources to tackle such jobs. There may be access issues, threat of building collapse, or obstacles in delicate surgical issues. In most cases, robot size is the problem as the hardware must be diminutive enough to fit into small places but must also be able to move within them properly. With that in mind, Abtan reached toward origami for inspiration, integrating a design that could morph from small to large,
“Origami robots are autonomous machines, whose shape and function are created by folding. Their bodies are made of several dynamic folds that perform together to actuate the machine. The origami robot is made of a single planar sheet that is folded into a complex 3D structure. Origami robots have built- in compliance because of the geometry of the folds and the creases in the material, and they are semi-soft, that is, they exhibit the properties of both rigid and soft robots,” explained Abtan.
“The origami approach to making robots can be considered a top-down approach. This is in contrast to the conventional bottom-up approach for making robots, that is, independent components such as nuts and bolts are manually assembled in an incremental way, requiring time, effort, and expertise. Origami robots provide an opportunity to simplify and accelerate the design and fabrication of robots.”
One obvious issue regarding origami robots is the need to replace paper with appropriate materials for the applications at hand.
“Until now there is no clear vision about origami structure behavior and many researchers still study various kinds of origami structures,” states Abtan.
The initial step for creating a folding robot is in understanding the origami structure, followed by researching folding types and mathematical descriptions. In some cases, they may need to be analyzed for potential in mechanical engineering applications. Abtan explores three basic origami structures: Miura, ball, and twisted tower. Dedicated research is required for designing the hinges and choosing proper materials.
For this study, a 3D printer was used to create a folding structure. Abtan used two different types of material (Vero for solid faces and TangoPlus FLX930 for soft crease lines), and then proceeded to perform tensile tests, bending tests, fatigue tests, and more.
“The results show that the strain limit of fatigue is 0.226 for high dynamic load, but it can be increased to 1.6 for low cyclic load,” stated Abtan. “Furthermore, the Tango plus FLX930 cannot fail due to tensile forces under this range of strain. The Kapton mechanical properties shows high tensile elongation compared with the Tango Plus material. The Kapton fatigue limit is calculated and the results show that the strain limit of fatigue is 0.1 for high dynamic load.”
The actuation system depended on the needs of the robot, with two different types of force transmission tools tested—the SK75 Dyneema rope and the 3D printed chain. Upon obtaining three different results upon measuring the breaking load of the 3D printed chain, Abtan noted that an embedded actuation system with smart materials was ‘suitable’ for a self-folding structure using SMA wire.
“The next step was to combine the OSM structure with the external actuation system in order to build an OSM-bot (Origami structure for manipulation robot). Merging the 3D printed structure, (that has hinges printed using Tango plus material), with SMW actuators to provide a self-folding structure was another step towards realizing self-folding structures,” stated Abtan.
With three methods available for making self-folding structures, the researchers chose all three—from manually cutting materials to using a laser cutter, to 3D printing—fabricating the crease pattern with two materials at once. The first try failed, with cracks on the edges and gaps at the borders. To solve the problem, the researchers created a new sample of the unit cell with 0.5 mm overlap of the Tango Plus material on the edges.
“A self-folding cube was fabricated by using this 3D printing approach. The cube was activated by using five BSW actuators with uniform heating activation. The cube operates a stable folding process within 19 seconds,” said Abtan.
The OSM-Bot was made using paper cards, and an external actuator with four servos and Sk75 Dyneema rope used for force transmission.
“The OSM-Bot shows the ability to be manipulated using contraction and bending motion in four directions,” concluded Abtan. “Two other ways to fabricate the OSM-Bot are investigated: the acrylic-Kapton with laser cutting approach, and the 3D printing approach. The two methods fail to build a stable OSM-Bot structure that could operate like the card paper origami structure.”
3D printing and soft robotics are often connected, and the inspiration of origami is sometimes used in other projects too, from strengthening metamaterials to fabricating expandable structures, and improving lattices.[Source / Images: ‘Design and Fabrication of Origami Elements for use in a Folding Robot Structure’]
