Researchers from Slovakia are exploring the use of new, more affordable materials in 3D printing, releasing their findings in the recently published ‘Novel Hybrid PETG Composites for 3D Printing.’
Additive manufacturing and 3D printing open up infinite options for users—from the makers and the hackers to designers, architects, engineers, and industrial users who may need specific materials with specific mechanical properties for varying innovations. In this study, the authors prepare a new hybrid polymer composite made up of expanded graphite, carbon fibers, and ‘combinations thereof’ in ratios up to ten percent.
Taking us back to the beginnings of 3D printing via Chuck Hull, the authors explain that as 3D printing has become much more accessible and affordable, researchers have countless options in software, hardware, and materials. And although acrylonitrile butadiene styrene (ABS) and polylactic acid (PLA) are most popular, along with fused filament fabrication (FFF), today a wide variety of alternatives are available. This includes composites, which continue to increase in popularity as additives enhance polymers and other materials.
For this study, the researchers developed a glycol-modified PET copolymer:
“Poly(-ethylene glycol-co-1,4-cyclohexanedimethanol terephthalate) (PETG) is synthesized by partially replacing the ethylene glycol (EtGly) units of PET with 1,4-cyclohexanedimethanol (CHDM) units,” explained the researchers. “The PETG copolymer is amorphous when the CHDM content is in the range of 32%–62%.”
Mechanical properties are similar to PET, but also with the following:
- Tensile toughness that is noticeable
- High processability
- Excellent chemical resistance
The research team was mainly interested in developing a composite that could be used in FFF 3D printing, replacing virgin polymers with the same quality but better affordability.

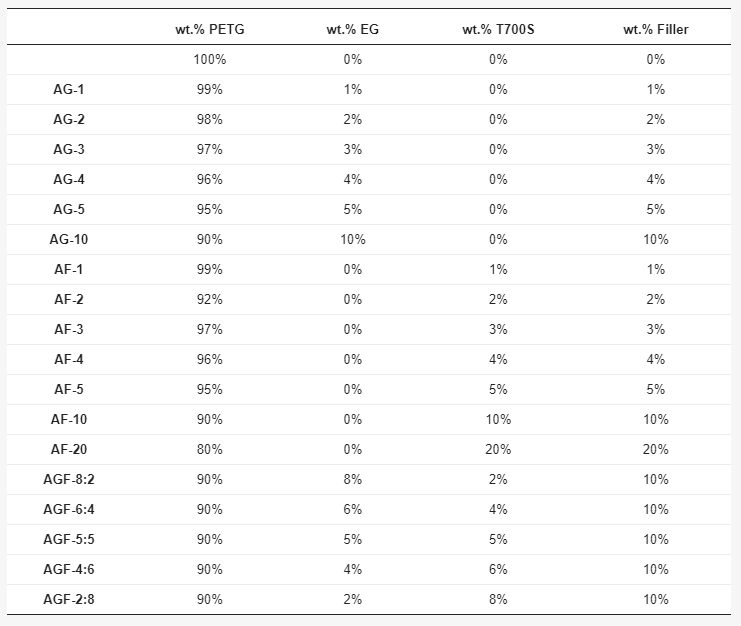

23 samples were prepared overall, with 19 of them made out of virgin PETG and the others out of recycled PETG. Two centers had no additive, acting as controls. Other composites consisted of expanded graphite (EG), carbon fibers (CFs), and both EG and CF mixed. Sample CF’s were ‘chopped’ into 2 mm lengths.
Dog bone samples measuring 115 × 19 × 2 mm were created from the slabs, with each part made on a Quadron 1001 FFF 3D printer.
The researchers found all of the composites to be good for FFF 3D printing, displaying ‘excellent processing properties’ for 3D printing—with the exception of the AG-10 materials which was so brittle that it broke during the printing process, attributed to poor mechanical properties and dispersion of filler, in comparison to the other composites.
“The prints are extremely strong, the layers adhere firmly, and the overall strength of the products is extraordinary. The individual layers adhere perfectly. It enables large product printing as well as several-day continuous 3D printing compared to competing materials. The resulting products look more beautiful, which improves subsequent work with products and saves time,” concluded the researchers.
“Adding EG [expanded graphite] resulted in enhancement of mechanical properties and increasing density. Composite materials containing CFs and CF/EG also enhanced mechanical properties but decreased density. Addition of the carbon fillers has minimal influence on the thermal properties of the material; however, the presence of CF in composites has a significantly lower thermal expansion coefficient. Replacing virgin PETG with recycled PETG does not significantly change the properties of the filament, just causes a price reduction.”
What do you think of this news? Let us know your thoughts! Join the discussion of this and other 3D printing topics at 3DPrintBoard.com.[Source / Images: ‘Novel Hybrid PETG Composites for 3D Printing’]
